Product Details of T-Slot Aluminum Extrusion

Specifications of T-Slot Aluminum Extrusion

As per the customer’s drawing, for stock specifications, please contact us to get the product list.

90 Series

T-slot aluminum extrusion is usually used for safety-guarding, testing, and inspection services to workbenches, machine frames, conveyors, CNC, and linear systems.

Weight: 6.20 kg/m.

Mass of Inertia: lx: 172.14 cm4   ly: 172.14 cm4.

Section Modulus: zx: 40.76 cm3   zy: 40.76 cm3.

T-slot width: 10.2 mm, T-slot height: 12.3 mm, Section size: 90 mm × 90 mm, Hole: φ10.2 mm, Wall thickness: 2.0 mm.

100 Series

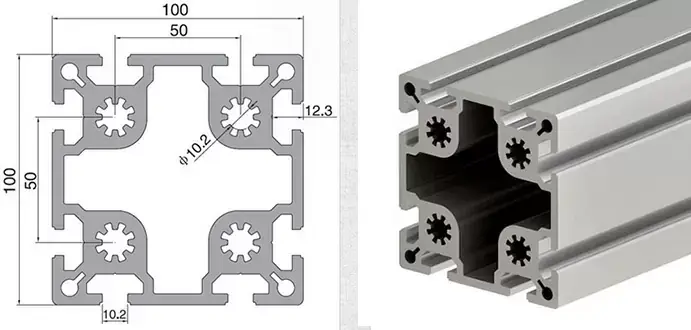

The T-Slot Aluminum Extrusion of the S10-100100 profile is 10.2 mm, ideal for heavy-duty applications where added strength and an additional T-slot aluminum extrusion are a must, when choosing accessories or fasteners, M10 is suitable. In addition, it can be connected with 50 series profiles and other parts such as handle, end connector, caster, etc. T-slot aluminum extrusion is widely used for building blocks, clean rooms, conveyors, CNC, and other frameworks.

Weight: 11.48 kg/m

Mass of Inertia: lx: 397.83 cm4   ly: 397.83 cm4

Section Modulus: zx: 81.36 cm3   zy: 81.36 cm3

T-Slot width: 10.2 mm

T-slot height: 12.3 mm

Section size: 100 mm × 100 mm

Hole: φ10.2 mm

Wall thickness: 6.0 mm

160 Series

Usually, it would be chosen to make an equipment rack or large-scale machine beams. It can connect with 80 Series T-slot aluminum extrusion profiles.

Weight: 18.69 kg/m

Mass of Inertia: lx: 1988.54 cm4   ly: 1988.54 cm4

Section Modulus: zx: 257.13 cm3   zy: 257.13 cm3

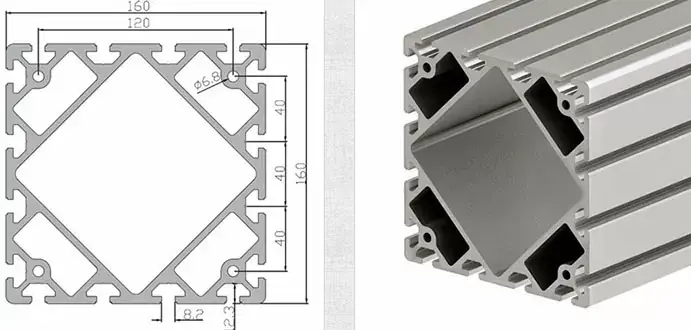

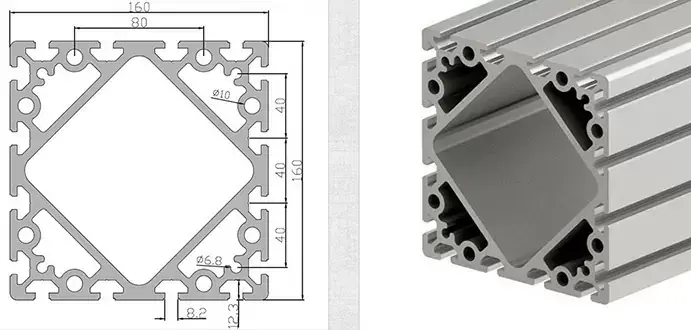

T-slot Width: 8.2 mm, T-slot height: 12.3 mm, section size: 160 mm × 160 mm, 4 marginal holes: φ6.8 mm. Wall thickness: 4.5 mm
